Vibratory Finishing Machine

Offering you a complete choice of products which include Vibro Automatic Finishing Machine.It comprises a metalic bowl which is lined inside with Polybutadene Rubber or Polyurethane. The bowl is loaded with preformed cutting media & components. In the centre of the bowl special heavy duty vibratory motor having eccentric weights on both ends of the shaft is mounted to generate powerful spiral motion. This creates a continuous relative motion between media & components, and required finishing results are achieved. Special compounds are also added to achieve better & faster results.

Vibratory Finishing Machine without Separation System.

Vibratory Finishing Machines are mass finishing machines, used for deburring, polishing, descaling and surface improvement on metal and plastic components. The machine has steel bowl lined with rubber or polyurethane which is filled up with required media (Higher ceramic, plastic, maize etc. depending upon the finish required) and components. Eccentric weights are mounted on an extended shaft attached to a heavy duty motor to cause vibrations and create a spiral of the media and the components. Variations in vibration, achieved by varying weights and angles, and suitable combination of media enable machine to be used for different components.

MODEL NAME BOWL
OD		 BOWL ‘U’ Width
After Lining		 BOWL ‘U’ Depth
After Lining		 Total Height Volume ‘Ltr.’ Motor HP
VFM 40-STD 700 140 160 720 40 0.5
VFM 80-STD 940 210 200 854 80 0.5
VFM 160-STD 1050 250 290 885 160 1.5
VFM 250-STD 1200 285 360 985 250 2
VFM 350-STD 1330 340 370 990 350 2
VFM 600-STD 1580 425 500 1030 600 5
VFM 800-STD 1700 510 490 1030 800 5
VFM 1200 -STD 2053 600 540 1249 1200 7.5
VFM 2000-STD 2288 680 722 1415 2000 10

FEATURES :

  • Effective motor position for Superior Vibration.
  • High tensile nut bolts for longer machine life.
  • Efficient removal of process fluid for best surface
    finish.
  • Energy efficient motor.
  • Bowls shot blasted before and after Polyurethane
    lining for painting
  • All internal welds ground smooth
  • Anti rotation motor locking plate provided
  • Bowls are stress relieved
  • Complete Polyurethane lined bowl including separation
    area.
  • Complete Polyurethane dam to avoid metal contact instead
    of metal
  • Polyurethane corrosion resistant paint for longer life in
    acidic/alkaline
  • Environments Accident proof media outlet design for total safety

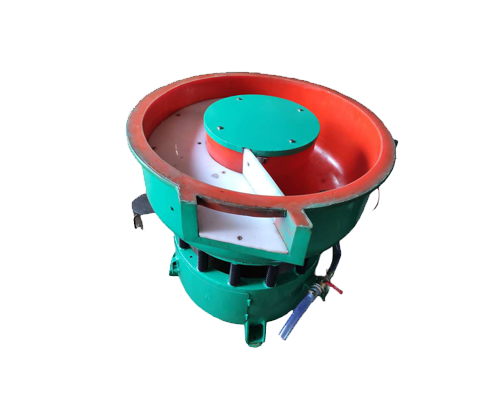

Vibratory Finishing Machine with Separation System.

Vibratory finishing Machine with Separation These machines are provided with
separation of parts from media with specially designed screens. We custom make
these screens based on your part sizes and media chosen for your process. It is
possible to automate the entire finishing process. Bigger size machines will be
available on demand.

MODEL NAME BOWL
OD		 BOWL ‘U’ Width
After Lining		 BOWL ‘U’ Depth
After Lining		 Total Height Volume ‘Ltr.’ Motor HP
VFM 40-RD 672 140 235 785 40 0.5
VFM 80-RD 902 206 333 934 80 0.5
VFM 160-RD 1040 250 370 975 160 1.5
VFM 250-RD 1195 290 455 1075 250 2
VFM 350-RD 1304 340 565 1170 350 2
VFM 600-RD 1560 415 550 1165 600 5
VFM 800-RD 1676 434 611 1230 800 5

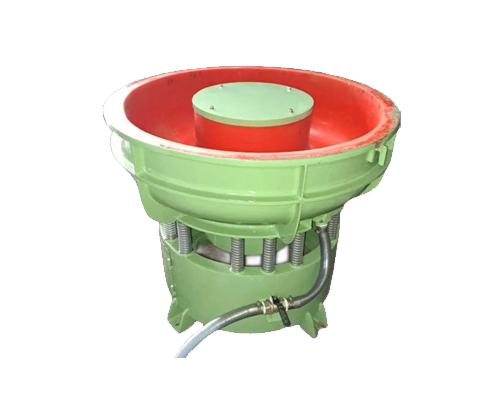

VFM Std-Ball Burnishing Model

Vibratory Burnishing Machines are specially designed for the burnishing process using steel media. The motors are designed for excellent cascade of increases work load. Separation is manual.

BB MODEL BOWL OD BOWL ‘U’ Width After Lining BOWL ‘U’ Depth After Lining Total Height Volume ‘Ltr.’ Motor HP
VFM 40-BB STD 700 140 160 720 40 0.5
VFM 100-BB STD 940 210 240 854 80 1.5
VFM 160-BB STD 1050 250 290 885 160 2
VFM 250-BB STD 1200 285 360 900 250 2
VFM 350-BB STD 1330 280 370 900 350 3
